If you want to experience Newmar's quality and innovations in a compact and capable coach, take a look at the Bay Star Sport Class A gas motorhome. With multiple floorplans to choose from, ranging from 27' to 32' in length, you will have no problem camping at parks across the country.

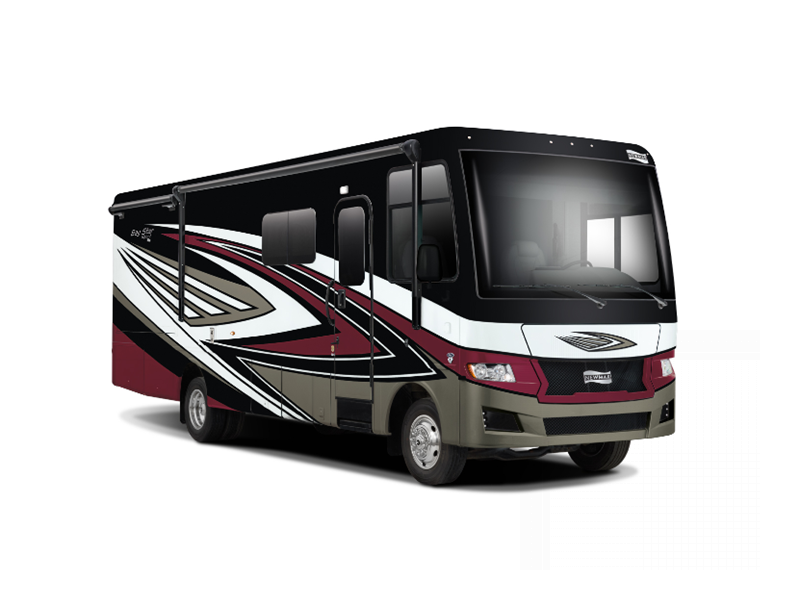

The exterior is the first thing to catch your eye with its full-paint Masterpiece Finish, and you'll appreciate the smart level hydraulic leveling jacks with a Bluetooth compatible touch pad for easy set up at the campsite. Head inside to find Williamsburg furniture, vinyl tile flooring, polished solid surface countertops for added luxury, plus new wood stain options.



The Bay Star Sport Class A gas motorhome by Newmar is packed with features and options to make it one outstanding coach; choose yours today!

  • Specifications

    Sleeps 5
    Slides 2
    Length 27 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Stowe, Wrigley, Cervo
    Exterior Color Bodin, Chester, Newquay
    Hitch Weight 5000 lbs
    GVWR 20500 lbs
    Dry Weight 17550 lbs
    Cargo Capacity 2950 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 30000 btu
    Generator 4.0 kW Cummins Onan
    Fuel Type Gas
    Engine 7.3L V8
    Chassis Ford F-53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 178 in
    Available Beds Queen
    Torque 468 ft-lb
    Refrigerator Type Norcold
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 32" x 32"
    Number of Awnings 1
    Axle Weight Front 7500 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 25 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 13500 btu
    TV Info LR Samsung LED TV on Power Lift, BR 32" LED TV
    Awning Info Carefree Travel'R Side Awning with LED Lighting
    Gross Combined Weight 26000 lbs
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

  • Bay Star Sport 3014

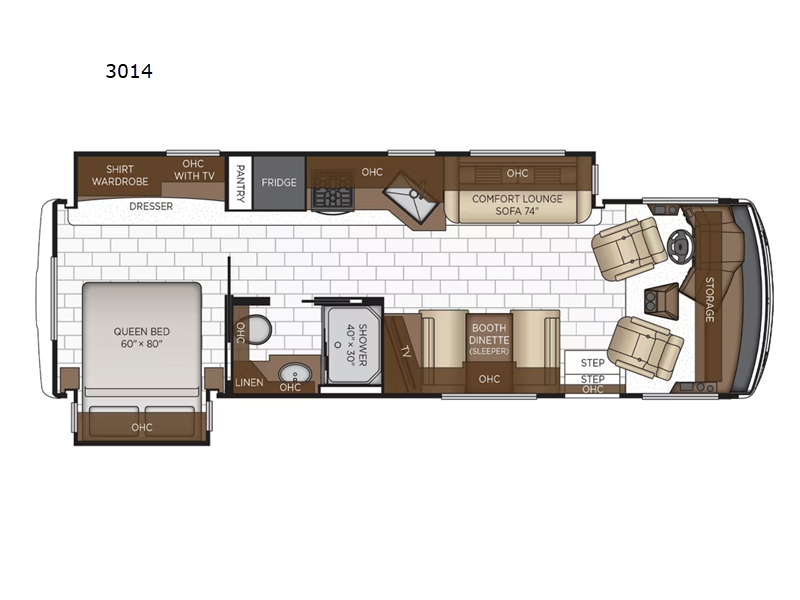

    Bay Star Sport 3014 Floorplan Image

    Newmar Bay Star Sport Class A gas motorhome 3014 highlights: Full-Wall Slide ... more about Bay Star Sport 3014

    Specifications

    Sleeps 5
    Slides 2
    Length 30 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Arlo, Stowe, Vista
    Exterior Color Cayenne, Midnight, Ocean View
    Hitch Weight 5000 lbs
    GVWR 22000 lbs
    Dry Weight 18800 lbs
    Cargo Capacity 3200 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 30000 btu
    Generator 4.0 kW Cummins Onan
    Fuel Type Gas
    Engine 7.3L V8
    Chassis Ford F-53
    Horsepower 335 hp
    Fuel Capacity 80 gals
    Wheelbase 200 in
    Available Beds Queen
    Torque 468 ft-lb
    Refrigerator Type Norcold
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 40" x 30"
    Number of Awnings 1
    Axle Weight Front 8000 lbs
    Axle Weight Rear 15000 lbs
    LP Tank Capacity 25 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 13500 btu
    TV Info LR Samsung LED TV, BR 32" Samsung LED TV
    Awning Info Carefree Travel'R Side Awning with LED Lighting
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Bay Star Sport 2813

    Bay Star Sport 2813 Floorplan Image

    Newmar Bay Star Sport Class A gas motorhome 2813 highlights: Double Slides 32" ... more about Bay Star Sport 2813

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 28 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Arlo, Stowe, Vista
    Exterior Color Cayenne, Midnight, Ocean View
    Hitch Weight 5000 lbs
    GVWR 20500 lbs
    Dry Weight 17650 lbs
    Cargo Capacity 2850 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 30000 btu
    Generator 4.0 kW Cummins Onan
    Fuel Type Gas
    Engine 7.3L V8
    Chassis Ford F-53
    Horsepower 335 hp
    Fuel Capacity 80 gals
    Wheelbase 182 in
    Available Beds Queen
    Torque 468 ft-lb
    Refrigerator Type Norcold
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 40" x 30"
    Number of Awnings 1
    Axle Weight Front 7500 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 25 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 13500 btu
    TV Info LR Samsung LED TV on Power Lift, BR Samsung 32" LED TV
    Awning Info Carefree Travel'R Side Awning with LED Lighting
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 30 amp
  • Bay Star Sport 3016

    Bay Star Sport 3016 Floorplan Image

    Newmar Bay Star Sport Class A gas motorhome 3016 highlights: Full-Wall Slide ... more about Bay Star Sport 3016

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 30 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Arlo, Stowe, Vista
    Exterior Color Cayenne, Midnight, Ocean View
    Hitch Weight 5000 lbs
    GVWR 22000 lbs
    Dry Weight 18800 lbs
    Cargo Capacity 3200 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 30000 btu
    Generator 4.0 kW Cummins Onan
    Fuel Type Gas
    Engine 7.3L V8
    Chassis Ford F-53
    Horsepower 335 hp
    Fuel Capacity 80 gals
    Wheelbase 200 in
    Available Beds King
    Torque 468 ft-lb
    Refrigerator Type Norcold
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 40" x 30"
    Number of Awnings 1
    Axle Weight Front 8000 lbs
    Axle Weight Rear 15000 lbs
    LP Tank Capacity 25 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 13500 btu
    TV Info LR Samsung LED TV, BR Samsung 32" LED TV
    Awning Info Carefree Travel'R Side Awning with LED Lighting
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Bay Star Sport 3225

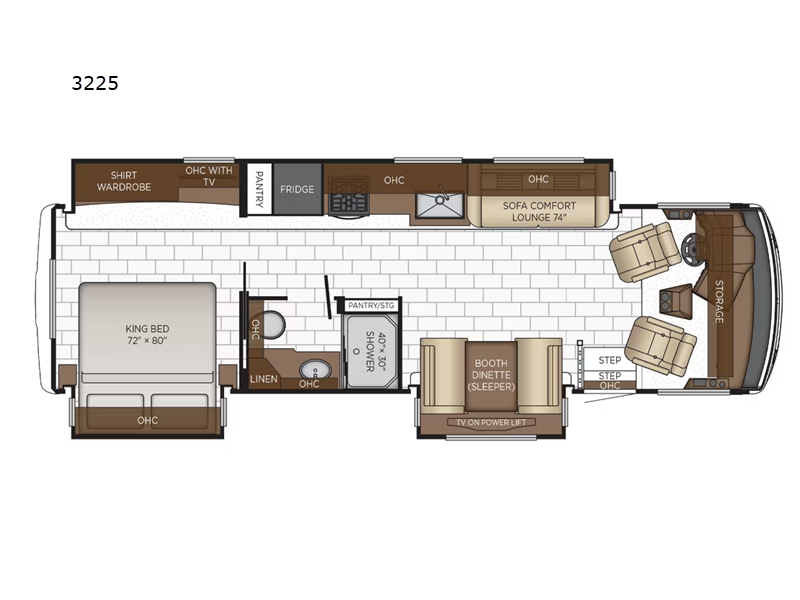

    Bay Star Sport 3225 Floorplan Image

    Newmar Bay Star Sport Class A gas motorhome 3225 highlights: Full-Wall Slide ... more about Bay Star Sport 3225

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 3
    Length 32 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Arlo, Stowe, Vista
    Exterior Color Cayenne, Midnight, Ocean View
    Hitch Weight 5000 lbs
    GVWR 22000 lbs
    Dry Weight 20050 lbs
    Cargo Capacity 1950 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 30000 btu
    Generator 4.0 kW Cummins Onan
    Fuel Type Gas
    Engine 7.3L V8
    Chassis Ford F-53
    Horsepower 335 hp
    Fuel Capacity 80 gals
    Wheelbase 220 in
    Available Beds King
    Torque 468 ft-lb
    Refrigerator Type Norcold
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 40" x 30"
    Axle Weight Front 8000 lbs
    Axle Weight Rear 15000 lbs
    LP Tank Capacity 25 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric with Electric Ignition
    AC BTU 13500 btu
    TV Info LR Samsung LED TV Lift, BR 32" LED
    Awning Info Carefree Travel'R Side Awning with LED Lighting
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

Bay Star Sport Features:

Standard Features (2025)



Exterior

  • Full-Paint Masterpiece Finish with Clearcoat Finish
  • Diamond Shield Protection on Front Cap
  • Automatic Step for Entrance Door
  • Convex Exterior Mirrors with Defrost & Remote Control
  • Rear Hitch for Towing Car
  • Assist Handle at Entrance Door
  • Mud Flaps
  • Smart Level Hydraulic Leveling Jacks with Bluetooth Compatible Touch Pad
  • Undercoating

Optional

  • Rear Ladder
  • Flag Pole Bracket

Construction

  • DiFlex II™ Roof with Walkable Deck
  • Gelcoated Fiberglass Exterior Sidewalls, Front & Rear Caps
  • Aluminum-Frame Sidewalls & Roof Construction, on 16" Center
  • 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
  • Automatic Mechanical Lock Arms on Slideout Rooms-Scissor Style

Optional

  • Egress Door with Ladder System

Chassis

  • Ford® F-53 Chassis with 7.3Ltr V-8 Engine, 20,500 lb. on 27' - 28' Floorplans
  • Ford® F-53 Chassis with 7.3 Ltr V-8 Engine, 22,000 lb. on 29'-32' Floorplans
  • Cruise Control
  • Tilt Steering Wheel
  • Stainless Steel Wheel Simulators
  • Anti-Lock Braking System
  • Electronic Stability Control

Windows, Awnings, and Vents

  • One-Piece Tinted Windshield
  • Frameless Double Pane Tinted Safety-Glass Windows
  • Power Vent in Kitchen & Bathroom
  • Skylight Above Shower
  • Carefree Travel’R Side Awning
  • Rear Window in Bedroom

Optional

  • Slideout Covers, One Full, One Short
  • Slideout Covers, Two Short

Air Conditioning and Heating

  • 13.5M Penguin Heat Pump
  • Dash Heater and Air Conditioner
  • Propane Gas Furnace with Ducted Heat
  • Driver & Passenger Overhead Dash Fans

Optional

  • 15K BTU Penguin™ Heat Pump
  • Two 13.5K BTU Penguin™ Heat Pump A/C, 5.5 Onan® Generator, 50 Amp Electrical Service with Energy Management System

Electrical

  • 4.0 kW Cummins Onan® Generator with Remote Switch and Automatic Changeover
  • Automatic Generator Start on Low Battery or Temperature Setting
  • 30 Amp Electrical Service with Flexible Cord and Automatic Transfer Switch
  • Four 12 Volt House Batteries
  • Manual Battery Disconnect Switch for House Battery
  • 12 Volt Auxiliary Receptacle on Dashboard
  • Dash Radio, Cameras and Monitors to Power Up from Both House Batteries & Ignition
  • Daytime Running Lights
  • Emergency Engine Start Switch
  • Multiplex Lighting Control System
  • 10.1" Multiplex Monitor System In Center of Coach with Interior Lighting & HVAC Controls
  • LED Interior Lighting
  • Manually Operated Hold-To-Run Slideout Switch
  • Cable TV Connection
  • USB Outlet at Dash for Driver Use
  • Drain Lift Pump
  • Inverter 1200W with Converter Charger 60A
  • Lights in Exterior Storage Compartments
  • Wireless Phone Charger for Driver
  • LED Lighting on Awning

Optional

  • Six 6-Volt House Batteries
  • 2000 Watt Pure Sine with CPAP Prep

Plumbing

  • Demand Water System
  • Sewage Holding-Tank Rinse
  • Water Heater Bypass System
  • Dometic® 310 China Bowl Stool*
  • ABS Shower Surround with Shower Door
  • Systems Monitor Panel

Cabinets and Furniture

  • Dusk Maple Cabinets - Suede Finish
  • Concealed Hinges on Cabinet Doors
  • Drawers Underneath Booth Dinette Seats
  • Drawers with Full Extension Ball Bearing Guides
  • Polished Solid Surface Countertop in Kitchen with Stainless Steel Sink
  • Solid Surface Countertops in Bathroom and Bedroom
  • Williamsburg Sofa and Front Seats
  • Passenger Seat with Manual Foot Rest
  • Lifts on Bed Top
  • Plush Pillow Top Mattress
  • Soft Close Cabinet Drawers

Optional

  • Chiffon Maple Cabinets—Suede Finish
  • Mesa Glazed Maple Cabinets-Suede Finish
  • Two-Tone Chiffon Maple and Dusk Maple Cabinets—Suede Finish
  • Two-Tone Chiffon Maple and Mesa Glazed Maple Cabinets—Suede Finish

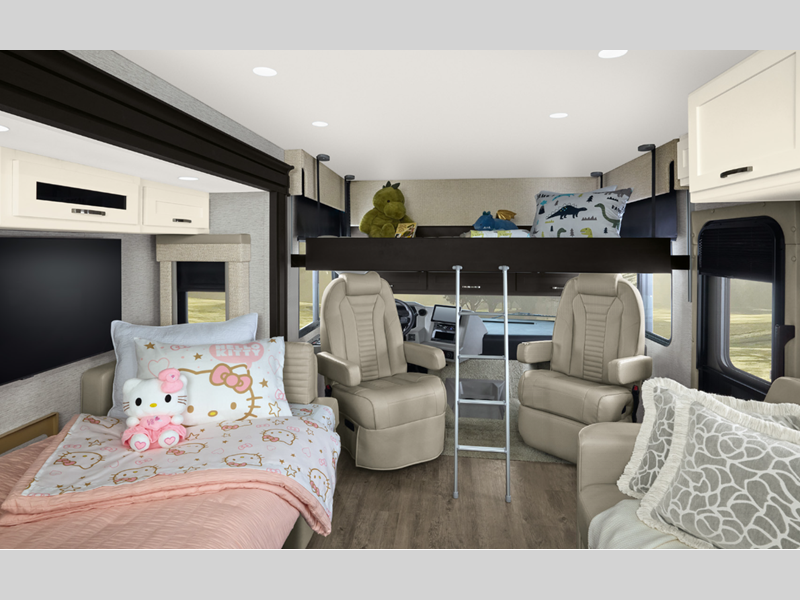

  • Drop-Down Bunk Bed Over Driver and Passenger Seats, Extends to Windshield with Bunk Ladder*
  • Driver Seat with Six-Way Power
  • Folding Cockpit Table
  • King-Size Bed*
  • 74" Visionary Trifold Sofa with Memory Foam Mattress
  • Dinette Euro Booth with One Table Leaf
  • 74" Sofa Incliner Non-Sleeper
  • 74” Theater Seating

Appliances

  • Three-Burner Range with Oven
  • Range Hood with Light and Fan
  • Microwave
  • Norcold® 8 Cf. Refrigerator
  • 6 gal. Gas/Electric Water Heater with Electric Ignition

Optional

  • Norcold 10 Cf. Refrigerator
  • Norcold 15 Cf. 3-Door Refrigerator with Icemaker (Removes Pantry)

Interior

  • Vinyl Ceiling Panels
  • Decorative Wall Art
  • Vinyl Floor in Kitchen, Living Area and Bathroom
  • Carpeting on all Slideout floors
  • Interior Assist Handle at Main Entrance Door
  • Bedspread with Picture Frame and Accent Pillow
  • Inlayed Six Panel Design Interior Passenger Doors
  • Auto Motion Power Shade at Windshield & Manual Shades at Driver & Passenger Side Windows
  • Auto Motion Manual Double Roller Shades on Windows Driver and Passenger Area
  • Dash Panel Color Coordinated ABS
  • Integrated Window Blind System on Entry Door

Audio & Video

  • Samsung LED TV in Living Area (TV sizes vary per floorplan)
  • 32” Samsung LED TV in Bedroom
  • Dash Radio with Harman/JBL 180w Sound System

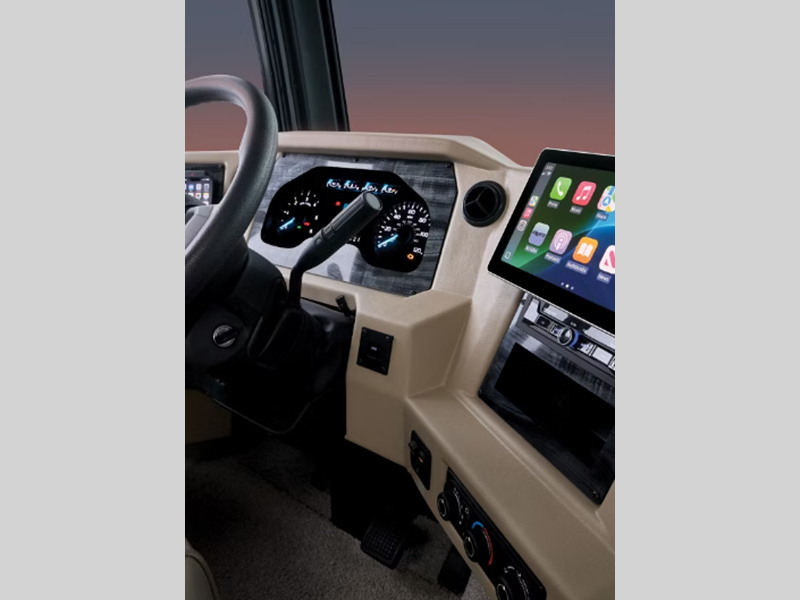

  • Axxera Dash Radio with Android Auto™ or Apple CarPlay® and SiriusXM® Ready, 10" Monitor
  • Rearview Colored Monitor System with Audio
  • Side-View Cameras Displayed onto Rearview Monitor Screen
  • High-Definition Component Wiring
  • Winegard Digital Crank-Up TV Antenna
  • TV Jack and 110-Volt Receptacle in Door Side Exterior Storage Compartment
  • Satellite Dish Prep on Roof
  • 10 Bc Fire Extinguisher, Smoke Detector, Propane and Carbon Monoxide Detector

Optional

  • WiFi Ranger Denali/Spruce LTE
  • WiFi System Everest with Aspen Interior Router
  • Winegard Rayzar Automatic Digital TV Antenna
  • Exterior Entertainment Center in Sidewall with 32" Samsung® LED TV, AM/FM Radio and Speakers
  • Starlink Internet System—Must order 2000w Inverter Option (L500)

See us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Newmar Logo

Newmar is a company built around the Christian faith, specifically the beginning of the Mennonite faith in 1525 under the guidance of Ulrich Zwingli, and the founding of the Amish fellowship under Jacob Amman in 1693.



At Newmar, we believe that a motor coach is more than just a vehicle, it’s a passport to countless hours of fun and a lifelong memories taken from quality time spent with family and friends.



For over 50 years, we’ve applied our principles to the creation of motor coaches that have allowed people all over the world to live the RV lifestyle. And we’ll continue to so for countless generations to come. It’s why we take pride in every rivet, weld, and mechanical function.
