Phoenix USA Phoenix TRX Motor Home Class B+ RVs For Sale

Previous
Next
1 of 15

The Phoenix TRX Class B+ gas motorhomes by Phoenix USA are built on a Ford Transit chassis for a smooth and quieter ride, and provide a full kitchen, a dry bath and sleeping space for two, all of which allow you and your companion to travel in comfort with premium features found throughout!



Each is constructed with a smooth gel-coat fiberglass exterior with aerodynamic body styling with curved sidewalls and roof, a molded gel-coated fiberglass front and rear cap, and a thick floor with tubular steel framework. The exterior includes fiberglass running boards for style and easy entry, an integrated front bumper and grill, two paint selections, and more. Some new features include a power tower pop-up electrical outlet and USB ports beside the kitchen sink, power door lock with a key fob, a SanMarin Macerator toilet, and more.



The Phoenix USA Phoenix TRX Class B+ gas motorhomes are perfect to travel the countryside and byways; choose yours today!

  • Phoenix TRX 1561

    Phoenix TRX 1561 Floorplan Image

    Phoenix USA Phoenix TRX Class B+ gas motorhome 1561 highlights: Sofa Slide Out ... more about Phoenix TRX 1561

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 23 ft 1 in
    Ext Width 8 ft 1 in
    Ext Height 9 ft 8 in
    Int Height 6 ft 4 in
    Interior Color Sirocca Grey, Sedona
    Exterior Color Mocha, Grey Steel
    Hitch Weight 3000 lbs
    GVWR 11000 lbs
    Fresh Water Capacity 31 gals
    Grey Water Capacity 25 gals
    Black Water Capacity 19 gals
    Tire Size 205/75R16C
    Furnace BTU 30000 btu
    Generator Onan 2800 Gas
    Fuel Type Gasoline
    Engine 3.5L EcoBoost
    Chassis Ford Transit 350HD
    Fuel Capacity 25 gals
    Wheelbase 156 in
    Refrigerator Type Three Way Double Door
    Convection Cooking Yes
    Cooktop Burners 2
    Axle Weight Front 4630 lbs
    Axle Weight Rear 5750 lbs
    LP Tank Capacity 42 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas w/Electronic Ignition
    AC BTU 15000 btu
    Gross Combined Weight 15000 lbs
    Shower Type Standard
    Electrical Service 30 amp
  • Phoenix TRX 1562

    Phoenix TRX 1562 Floorplan Image

    Phoenix USA Phoenix TRX Class B+ gas motorhome 1562 highlights: 28" x 67" ... more about Phoenix TRX 1562

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 23 ft 1 in
    Ext Width 8 ft 1 in
    Ext Height 9 ft 8 in
    Int Height 6 ft 4 in
    Interior Color Sirocca Grey, Sedona
    Exterior Color Mocha, Grey Steel
    Hitch Weight 3000 lbs
    GVWR 11000 lbs
    Fresh Water Capacity 31 gals
    Grey Water Capacity 25 gals
    Black Water Capacity 19 gals
    Tire Size 205/75R16C
    Furnace BTU 30000 btu
    Generator Onan 2800 Gas
    Fuel Type Gasoline
    Engine 3.5L EcoBoost
    Chassis Ford Transit 350HD
    Fuel Capacity 25 gals
    Wheelbase 156 in
    Refrigerator Type Three Way Double Door
    Convection Cooking Yes
    Cooktop Burners 2
    Axle Weight Front 4630 lbs
    Axle Weight Rear 5750 lbs
    LP Tank Capacity 42 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas w/Electronic Ignition
    AC BTU 15000 btu
    Gross Combined Weight 15000 lbs
    Shower Type Standard
    Electrical Service 30 amp
  • Phoenix TRX 1563

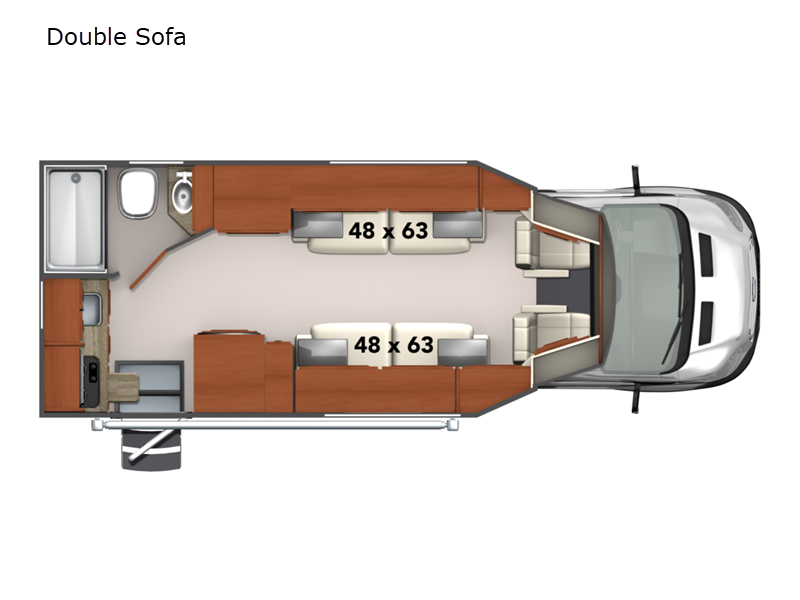

    Phoenix TRX 1563 Floorplan Image

    Phoenix USA Phoenix TRX Class B+ gas motorhome 1563 highlights: Two Sofas Full ... more about Phoenix TRX 1563

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 23 ft 1 in
    Ext Width 8 ft 1 in
    Ext Height 9 ft 8 in
    Int Height 6 ft 4 in
    Interior Color Sirocca Grey, Sedona
    Exterior Color Mocha, Grey Steel
    Hitch Weight 3000 lbs
    GVWR 11000 lbs
    Fresh Water Capacity 31 gals
    Grey Water Capacity 25 gals
    Black Water Capacity 19 gals
    Tire Size 205/75R16C
    Furnace BTU 30000 btu
    Generator Onan 2800 Gas
    Fuel Type Gasoline
    Engine 3.5L EcoBoost
    Chassis Ford Transit 350HD
    Fuel Capacity 25 gals
    Wheelbase 156 in
    Refrigerator Type Three Way Double Door
    Convection Cooking Yes
    Cooktop Burners 2
    Axle Weight Front 4630 lbs
    Axle Weight Rear 5750 lbs
    LP Tank Capacity 42 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas w/Electronic Ignition
    AC BTU 15000 btu
    Gross Combined Weight 15000 lbs
    Shower Type Standard
    Electrical Service 30 amp
  • Phoenix TRX 1781

    Phoenix TRX 1781 Floorplan Image

    Phoenix USA Phoenix TRX Class B+ gas motorhome 1781 highlights: Two Burner ... more about Phoenix TRX 1781

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 25 ft 3 in
    Ext Width 8 ft 1 in
    Ext Height 9 ft 8 in
    Int Height 6 ft 4 in
    Interior Color Sirocca Grey, Sedona
    Exterior Color Mocha, Grey Steel
    Hitch Weight 3000 lbs
    GVWR 11000 lbs
    Fresh Water Capacity 31 gals
    Grey Water Capacity 25 gals
    Black Water Capacity 19 gals
    Tire Size 205/75R16C
    Furnace BTU 30000 btu
    Generator Onan 2800 Gas
    Fuel Type Gasoline
    Engine 3.5L EcoBoost
    Chassis Ford Transit 350HD
    Fuel Capacity 25 gals
    Wheelbase 178 in
    Refrigerator Type Three Way Double Door
    Convection Cooking Yes
    Cooktop Burners 2
    Axle Weight Front 4630 lbs
    Axle Weight Rear 7275 lbs
    LP Tank Capacity 42 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas w/Electronic Ignition
    AC BTU 15000 btu
    Gross Combined Weight 15000 lbs
    Shower Type Standard
    Electrical Service 30 amp

Phoenix TRX Features:

Standard Features (2024)



Interior

  • 2 Décor Choices (Sirocca Grey, Sedona)
  • Cabinets (Hickory , Silver Mist)
  • Shaker cabinet doors and drawer fronts
  • Spacious wardrobe closet
  • Day/night slow rise shades
  • Coordinated decorative valance
  • Solid wood table tops
  • Solid wood counter top extension
  • Full Extension drawers with metal ball bearing glides
  • Stainless-steel kitchen sink
  • Pull out kitchen faucet with sprayer
  • Solid surface counter tops w/ storage pocket for sink covers
  • Luxury vinyl flooring
  • LED lighting on all interior lights
  • Memory foam seating cushions and mattress
  • Adjustable reading lights over sofa(s) and dinette
  • LPG and CO detector smoke detector
  • Fire extinguisher
  • 2 burner European range
  • Pop-up electric outlet with 2-USB ports
  • 12v high capacity on demand water pump
  • Solid wood drawer construction

Construction

  • Aerodynamic body styling with curved sidewalls and roof
  • Vacu-bond laminated, sidewalls, roof, and floor
  • Smooth gel-coat fiberglass exterior
  • Fiberglass one-piece walk-on roof
  • Molded gel-coated fiberglass front/rear cap
  • 2 ¼” thick floor with tubular steel framework
  • ½” exterior grade plywood subfloor
  • Heavy duty corrugated plastic fiberglass laminated to underside of the floor for moisture barrier
  • Block foam insulation is laminated inside the walls, roof, and floor
  • 1 ½” thick sidewalls and rear wall with aluminum cage
  • All windows and other openings in the sidewalls are framed with tubular aluminum
  • All roof vents and skylights are framed with tubular aluminum
  • Top Grade 3 Diamond shield installed on critical areas on painted surfaces
  • Fantastic vent

Electrical and Water

  • 15,000 BTU Roof A/C w/heat pump
  • 3-way double door refrigerator w/adjustable shelving
  • 2-Burner European range
  • 30,000 BTU furnace w/electric ignition
  • 6-Gallon gas water heater w/electronic ignition
  • Water distribution panel: City water, tank fill, tank use, and winterize
  • 2nd fresh water fill with locking door-pass
  • Water heater by-pass
  • Enclosed low point drain valves for fresh water
  • Outside shower
  • Heated black and grey water holding tanks
  • Systems monitor panel
  • 30-amp 25 ft. long detachable power cord
  • 2000- watt Inverter
  • Battery disconnect switch
  • 110- volt outside receptacles with GFI
  • 2 – 6-volt, deep cycle house battery
  • Cable TV hook up
  • 2.5 gas Onan generator
  • Manual waste tank dump valves
  • 2 locations for fresh water pump switch
  • Auto gen start

Cab Area

  • Keyless remote chassis doors
  • Cab floor insulated
  • Ford factory installed dash A/C
  • Factory installed AM/FM/CD Stereo
  • Driver and passenger front air bags
  • Adaptive Cruise control
  • Power windows and door locks
  • Tilt steering wheel
  • Windshield privacy curtain
  • Integrated running boards
  • Drink holders
  • 2 map lights
  • Memory foam driver and passenger seats
  • Glove box and center console storage
  • Seat belts with adjustable shoulder strap

Exterior

  • Baggage doors
  • Ford solid aluminum wheels w/valve extension
  • 3000lb hitch
  • Chrome LED patio light
  • Rear skid bar with rollers
  • Two paint selections
  • Body contoured entry door with deadbolt lock & keypad
  • Integrated front bumper and grill
  • One-piece fiberglass roof
  • Fiberglass running boards
  • Hide-away retractable screen door
  • Frameless automotive style windows with awning type crank open glass with deep tint

Heating/Appliance

  • 30” Convection Microwave Oven
  • 15,000 BTU Air w/heat pump

New Features

  • Insulated cab floor reducing heat and providing sound insulation for quieter ride
  • Front end alignment now standard on all Phoenix TRX
  • Power door locks with key fob
  • Power tower pop up electrical outlet and USB posts beside kitchen sink.
  • SanMarin Macerator Toilet
  • Magnetic cabinet door latches with high holding capability
  • One Key single key system for coach and storage compartments

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Phoenix USA

Incorporated in 1996 in Elkhart, Indiana, the company had a vision for a new style motorhome. Today Phoenix USA RV is one of the most reputable companies in the industry with one of the highest customer satisfaction ratings around. Filling a niche for a model a little larger than the Class B motorhome, yet smaller than the Class C, in 1997 Phoenix USA RV developed and introduced the Phoenix Cruiser B+ motorhome. The Phoenix Cruiser, is built for the RVer who wants to see our great nation. The size of the coach will provide luxurious comfort while affording access to the country’s most beloved sites.



An exciting new product – the Phoenix TRX – was rolled out in 2019. This coach serves as a crossover between SUVs and RVs. Built on the Ford Transit chassis, the Phoenix TRX is a sporty model designed for its driveability, versatility and small footprint– Available with diesel or gas engines.



The TRX is perfect for the active couple downsizing to a smaller model or a young family driving across town to a tailgate or a family reunion. And we’ve gone the extra mile to design a motor home that can be driven by anyone – particularly those intimidated by the size of a bigger model.



The Phoenix brands are currently available at select authorized resellers across the United States and more locations to come.
