- Floorplan - 2017 Newmar Ventana 3436
- Our Price: $222,990
- List Price: $242,990
- Discount: $20,000
-
Sleeps 4
-
3 Slides
-
Rear Bedroom
-
35ft Long
-
29,000 lbs
-
Chateau, Largo, Windwood

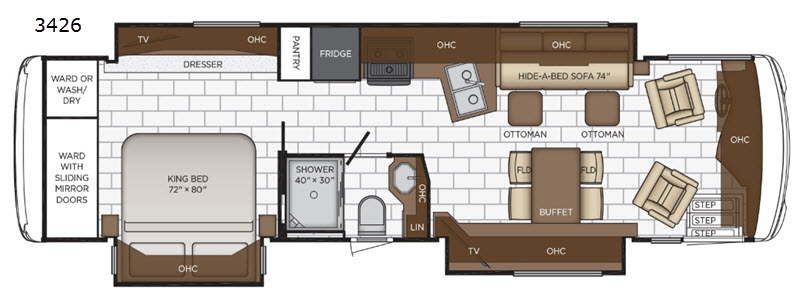

3426 Floorplan
Specifications
Sleeps | 4 | Slides | 3 |
Length | 34 ft 10 in | Ext Width | 8 ft 6 in |
Ext Height | 12 ft 10 in | Int Height | 6 ft 11 in |
Interior Color | Chateau, Largo, Windwood | Exterior Color | Chateau, Largo, Windwood |
Hitch Weight | 10000 lbs | GVWR | 35400 lbs |
Dry Weight | 29000 lbs | Cargo Capacity | 6400 lbs |
Fresh Water Capacity | 105 gals | Grey Water Capacity | 65 gals |
Black Water Capacity | 45 gals | Furnace BTU | 35000 btu |
Generator | 8.0 kW Cummins Onan Diesel Quiet Series | Fuel Type | Diesel |
Miles | 18268 | Engine | Cummins 6.7L |
Chassis | Freightliner | Horsepower | 360 hp |
Fuel Capacity | 100 gals | Wheelbase | 206 in |
Available Beds | King | Torque | 800 ft-lb |
Refrigerator Size | 10 cu ft | Convection Cooking | Yes |
Cooktop Burners | 3 | Shower Size | 40" x 30" |
Number of Awnings | 1 | Axle Weight Front | 12400 lbs |
Axle Weight Rear | 23000 lbs | LP Tank Capacity | 32 gals |
Water Heater Capacity | 10 gal | Water Heater Type | Gas/Electric DSI |
AC BTU | 30000 btu | TV Info | LR LED TV, BR LED TV |
Awning Info | Power with Wind Sensor, Remote, and LED Lights | Washer/Dryer Available | Yes |
Gross Combined Weight | 45400 lbs | Shower Type | Standard |
Electrical Service | 50 amp | VIN | 4UZACHFC0LCMD2187 |
Description
Newmar Ventana class A diesel motorhome 3426 highlights:
- Full Wall Slide
- Buffet
- Table and Chairs
- King Bed
- 74" Hide A Bed Sofa
- Two Ottomans
The chef will love the kitchen appliances including the convection microwave, and the pull-out pantry making it easy to get to the ingredients for their famous chocolate chip cookies. And the buffet including the table and chairs offers serving and dining space, as well as an office space if needed. Your guests can relax on the sofa, the ottomans, and the driver/passenger seats as they face the the main living and kitchen area. The handy USB charger at the bedroom nightstand and the dimmable/adjustable reading lights at the head of the bed will allow you to charge your electronics and read a book before easily falling asleep on the king bed. You will also find a wireless charging mat built into the dash, and there are several options to choose to make this coach the perfect RV for you!
Built on a Freightliner tag axle chassis with a STAR foundation which is framed 16 inches on the center and is covered by a BriteTEK roof with walkable decking and integrated gutter rail, you will appreciate the quality from the very beginning. You may decide to choose a Spartan tag axle chassis offered on several units which will change the specifications, yet you will still get all the standard features you desire. Inside each Ventana you will find redesigned furniture and cabinet doors, soft closed drawers with new hardware, and polished solid surface countertops in the kitchen, bathroom and bedroom. Make no compromises, start traveling in a Ventana class A diesel coach by Newmar today, and go beyond what's expected!
Features
Standard Features (2020)
Exterior
Standard
- Full-Paint Masterpiece Finish™ with Diamond Shield Protection on Front Cap
- Convex Exterior Mirrors with Remote Control, Defrost and Turn Signals
- Chrome Exterior Mirrors
- Entrance Door with Automatic Step
- Rear Hitch for Towing Car
- Assist Handle at Entrance Door
- Mud Flaps
- Rear Protective Tow Guard with Stainless Steel Newmar Letters
- Undercoating
- Wheelchair Lift on 4311 Floorplan
- Hydraulic Leveling Jacks with "Smart Level"
- Stainless Steel Exterior Trim Pieces on Front Cap
- Painted Power Baggage Door Locks, Keyless Entrance Door with Touch Pad & Doorbell
- Hammock Backer
Optional
- Patio Hammock Package
- Large Storage Tray with Access from One Side
- Pass-Through Storage Tray with Access from Either Side
- Power Pass-Through Storage Tray with Access from Either Side on 4311
- Chrome Power Baggage Door Locks
- Flag Pole Bracket
- Rear Ladder
Construction
- Gelcoated Fiberglass Exterior Sidewalls, Front and Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, 16" on Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
- Polar Pak R19 Batten Insulation in Roof
- Fiberglass Roof and Integrated Gutter Rail
- Automatic Mechanical Lock Arms on Slide out Rooms - Scissor Style
Chassis
Standard
- Freightliner 360Hp on 34'-37' Floor Plans
- Freightliner® Tag Axle 400Hp on 40'-43' Floor Plans
- Aluminum Wheels
- Cruise Control
- Comfort Drive™ Steering With Adjustable Control
- Manual Tilt and Telescope Steering Column with VIP Smart Wheel
- Recessed Fuel Fills with Crossover to Fill from Either Side
- Back-Up Alarm
- Antilock Braking System
- Chassis Battery Disconnect
- V-Ride Drive Axle Suspension on Freightliner Chassis
- Glass Dash Instrumental Panel
Optional
- Spartan® Tag Axle 400Hp on 40’-43’ Floorplans
Mechanical and Electrical
Windows, Awnings & Vents
Standard
- Frameless Double-Pane Tinted Safety-Glass Windows
- Fan-Tastic® Vent with Rain Sensor in Kitchen and Bathroom
- Skylight Above Shower
- Girard G20000 Power Side and Entrance Door Awning with Wind Sensor, Remote Control & LED lights
- Slide out Awning Covers
- One-Piece Tinted Windshield
- Egress Door with Ladder System
Optional
- Carefree Window Awning Pkg of (3), 1-Bedroom, 1-Off Door Side Living Room, 1-Door Side Living Room
- Carefree Window Awning Pkg of (4), 1-Bedroom, 1-Off Door Side Living Room, 2-Door Side Living Room
- Kitchen Window*
- Screen Door Over Wheel Chair Lift Area*
- Two Nova Side Awnings
- Bunk Windows*
Air Conditioning & Heating
Standard
- Two-15M Penguin™ Heat Pump Air Conditioners on 34'-40' Floor Plans
- Three-15M Penguin Heat Pump Air Conditioner and Energy Management System* - 43' Floor Plans only
- Propane Gas Furnace with Ducted Heat on 34’-40’ Floorplans
- Hydronic Zone Heating System with Continuous Hot Water on 43’ Floorplans
- Dash Heater and Air Conditioner
- Driver & Passenger Dash Overhead Ventilation System
- Wall-Mounted Sensors for Heating and Air Conditioning
Optional
- Hydronic Zone Diesel Heat with Continuous Hot Water*
Electrical
Standard
- 8.0 kW Cummins Onan® Diesel Quiet Series Generator
- 50 Amp Electrical Service with Flexible Cord with Automatic Transfer Switch
- Four 6-Volt House Batteries on Pullout Tray
- Battery Disconnect Switch for House Battery
- 10 Watt Solar Panel to Charge Chassis Battery
- 2000 Watt Modified Sine Inverter
- 12 Volt Auxiliary Receptacle on Dashboard
- Emergency Engine Start Switch
- Engine Block Heater
- Exterior Security Light on Door side
- Mid-Ship Side Turn Signals
- LED Lights Recessed in Ceiling and Underneath Overhead Cabinets
- Manually Operated Hold-To-Run Slide out Switch
- Cable TV Connection
- Interior Courtesy Lights
- Lights in Exterior Storage Compartments
- USB Charger at Dinette & Bedroom Night Stand
- Wireless Charging Mat Built into Dash
- USB Outlet at Dash for Driver Use
- Spare Fuses in Chassis and House Fuse Panels
- Automatic Generator Start on Low Battery or Temperature Setting
- Energy Management System
- Multiplex Lighting Control System
- Dimmable/Adjustable Reading Lights at Head of Bed
- 110 Volt Recept in Bed Overhead with Two Pass-Through Ports
- 110V/USB Outlet at Head of Each Bunk Area*
- Power Rewind Reel with 33’ Cord*
- Power Rewind Reel with 50’ Cord*
Optional
- Solar Prep with Six-Gauge Wire Ran from the Roof to the House Battery Compartment
- Four Flexible 100 Watt Solar Panels on Roof
- Transfer Switch with Surge Protector
Plumbing & Bath
Standard
- Demand Water System
- Sewage Holding-Tank Rinse
- Water Heater Bypass System
- Dometic® 321 China Bowl Stool or Macerator Stool*
- Systems Monitor Panel
- Sentrel Acrylic Shower Walls with Glass Door*
- Water Filter for Entire Unit
- Exterior Shower
- Auto Fill with Monitor in Water Works Compartment
- Power Water Hose Reel
- Aqua Miser Shower System
Optional
- Fold-Down Shower Seat
- Hot Water Line to Generator Area*
Interior
Cabinets & Furniture
Standard
- Bermuda Glazed Maple Hardwood Face Frame Cabinets with Mitered Raised Panel Designer Doors- Matte Finish
- Concealed Hinges on Cabinet Doors
- Polished Solid Surface Countertop in Kitchen with Under Mounted Stainless Steel Sink and Sink Covers
- Polished Solid Surface Countertop in Bathroom and Bedroom
- Dinette with Power Adjusted Table, Bench Seat and Folding Chair on Wheelchair Accessible Floorplan*
- Lifts on Bed Top
- Passenger Seat Work Station
- Pullout Pantry Shelves*
- Drawers with Full Extension Guides
- Flexsteel® Ultrafabric Sofa and Driver/Passenger Seats
- Driver/Passenger Seats with Six-Way Power, Power Lumbar and Footrest
- Plush Pillow Top Mattress
- Extended Rotation Concealed Hinge for Washer/Dryer Cabinet Door
- Appliance Garage in Kitchen*
- Two Ottomans*
- Mesh Cell Phone Holder at Each Bunk Bed*
- Molded Silverware Divider Tray
- Soft-Close Cabinet Drawers
- Travel Latch on Pantry Doors
- Villa Comfort Fit Convertible Booth Dinette
Optional
- Carmel Glazed Cherry Cabinets with Mitered Raised Panel Doors–Opt. Matte Finish
- Glacier Glazed Maple Hardwood Face Frame Cabinets with Mitered Raised Panel Doors-Matte Finish
- Newport Glazed Maple Hardwood Face Frame Cabinets with Mitered Raised Panel Doors-Matte Finish
- Queen Bed
- Comfort Booth Dinette*
- Comfort Booth Dinette with Steel Frame and Seatbelt*
- Buffet Dinette
- Buffet Dinette with Four Folding Chairs
- Buffet Dinette with Free Standing Table
- Buffet Dinette, Two Fixed/Two Folding Chairs on 4311
- Buffet/Dinette with Roll Away Table, Two Fixed/Two Folding Chairs
- Buffet Dinette Table and Four Folding Chairs
- Sleep Number R5 Radius Corner Air Mattress
- Combination Desk with Buffet Table, Two Fixed/Two Folding Chairs
- Combination Desk/Dinette with Free Standing Hidden Leaf Table, Two Fixed/Two Folding Chairs
- Combination Desk with Buffet Dinette, Two Fixed/Two Folding Chairs
- Combination Desk/Dinette with Roll Away Table, Two Fixed/Two Folding Chairs
- Recliner with Lamp stand
- One Recliner, Fireplace, Televator, Reading Lights-Off Door Side, Fold-N-Tumble
- Two Recliners, with Reading Lights
- 87” Sofa/Bunk*
- 87” Sofa/Bunk with End Table*
- Power Incline Head of Bed with Sleep Number R5 Air Mattress*
- Power Incline Retracting Bed Base with Sleep Number R5 Air Mattress*
- Flexsteel® Euro Booth Dinette with 1-6” Table Leaf
- Bunk Beds to Convert to Wardrobe
- Euro Booth Dinette on 3426
- Euro Booth Dinette with Extra Leaves, Folding Table Leg, & Two Folding Chairs
- Full Height Bed Base on 4311
- Villa Comfort Fit Convertible Booth Dinette
- Powered 74” Theater Seating
- Powered 87” Theater Seating
Appliances
Standard
- Convection Stainless Steel Microwave with Three Burner Recessed Gas Cooktop
- Air Horns
- Norcold® 10 Cf. Refrigerator with Brushed Aluminum Refrigerator Front
- 10 gal. Gas/Electric Water Heater with Direct-Spark Ignition on 34’-40’ Floorplans
- Prep for Two-Piece Washer/Dryer
- Flush Gas Cooktop Cover of Matching Countertop Material
- Fireplace in Living Area*
Optional
- 30” Convection Microwave in Kitchen Overhead with a Drawer Below Cooktop on 4311
- Norcold® 12 Cf. Four-Door Refrigerator with Icemaker
- Norcold® 12 Cf. Four-Door Refrigerator with Icemaker with Heated Water Line
- Icemaker Added to Standard Norcold® Refrigerator
- Icemaker Added to Standard Norcold® Refrigerator with Heated Water Line
- Whirlpool® 11 Cf. Refrigerator with 2000 Watt Pure Sine Inverter and Two Extra Batteries, 22 gal. Propane Tank and Icemaker
- Whirlpool® 11 Cf. Refrigerator with 2000 Watt Pure Sine Inverter and Two Extra Batteries and 22 gal. Propane Tank
- Whirlpool® 19.7 Refrigerator with 2000 Watt Pure Sine Inverter and Two Extra Batteries and 22 gal. Propane Tank
- Splendide® Two-Piece Stacked Washer/Dryer
- All Electric, Flush Mount Induction Cooktop, Whirpool 19.7 Refrigerator, 4 Extra Batteries, 2800 Inverter, Hydronic Heat
- All Electric, Flush Mount Induction Cooktop, Whirpool 19.7 Refrigerator, 4 Extra Batteries, 2800 Inverter
- Central Vacuum with Tool Kit
- 110 Volt Heat Pads for Holding Tanks
- Dishwasher in a Drawer with Stainless Steel Front
- Electrical Prep for Freezer without Tray
Interior
Standard
- Designer Feature Ceiling
- Tile Floor in Kitchen, Bathroom and Living Area
- Floor Tile Extended into Bedroom Area
- Carpeting on Slideout Floors
- MCD Window Shades
- MCD Power Shades at Windshield and Manual Shades on Driver/Passenger Side Windows
- Dash Panel Color Coordinated ABS
- Decorative Wall Art
- Inlaid Six-Panel Design Interior Passage Doors
- Interior Assist Handle at Main Entry Door
- Power Stepwell Cover
- Quilted Bedspread with Accent Pillows
- Removable Transport Pads for Under Slide out Rollers
- Waste Basket in Kitchen Base Under Sink
Optional
- Safe Located in Bedroom Wardrobe
- MCD Power Window Shades with Remote Control on 4311
Entertainment
Audio & Video
- Samsung LED 4K TV and DVD Player in Living and Bedroom Areas* (TV Sizes Vary Per Floorplan)
- Samsung 50” LED 4K TV on Televator in Living Area*
- Dash Radio/CD Player with Harman/JBL 180 Watt Sound System and Subwoofer
- Bose Solo 5 Sound Bar Sound System
- Bluetooth Microphone for Sony Dash Radio
- Two Blu-Ray Disk Players
- Rearview Color Monitor System with Audio
- Side-View Cameras
- Winegard Digital TV Antenna
- Satellite Dish Prep on Roof
- Two Bedroom Radio Speakers
- TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
- High Definition Component Wiring
- 10 Bc Fire Extinguisher, Smoke Detectors, Propane and Carbon Monoxide Detector
Optional
- Sirius® Satellite Radio Capability (Does not include monthly subscription)
- Samsung 43” 4K LED TV in Front Overhead
- 50” Televator TV with Fireplace on 4311 Floorplan
- Exterior Entertainment Center in Sidewall with Samsung 43” 4k LED TV and Soundbar
- Exterior Entertainment Center in Storage Compartment with Samsung 43” LED TV and Soundbar
- Omniview Ns360 Camera System*
- Prep for Ground Tripod Satellite Dish on Off Door Side with A/B Switch
- Winegard Automatic Dome Satellite
- Winegard Cellular In Motion Wifi
- Winegard In Motion Dome Satellite
- Winegard Automatic Open Face Satellite
- Winegard Automatic Open Face SWM Satellite Dish
- Winegard Rayzar Automatic Digital TV Antenna
- Wifi Ranger Sky4 Pack Router
- Wifi Ranger SkyPro Lte Cellular Router
- Universal Remote Control
- Universal Toll Module
- Xite Dash Radio, 6” Monitor with Rand McNally Navigation
- Two-19” Skyworth TV/DVD Player at Each Bunk*
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Save your favorite RVs as you browse. Begin with this one!
-
Great experience!
HUGE thanks to Chad for helping us find the perfect RV for our trip out west! He completely understood our needs as well as our budget. He went out of his way to find exactly what we needed instead of getting close enough for a quick sale. This guy is fantastic at what he does and we strongly recommend -
I highly recommend!
his review is long overdue. I had been gathering information for a class A RV for about 2 years and had visited several dealers in the surrounding states as well as hitting all the shows. We decided Newmar was our choice, and the Dutch Star was the model. I have a dealer about 40 miles north but Midway’s -
Midway RV is the best!
Ryan is the best! Very courteous and professional sales rep. We’re from Tennessee and had to fly to Michigan to purchase an RV that we had only seen online. It looked even better in person! The service tech who took us through the motorhome’s orientation was also equally knowledgeable and friendly.
Loading
Midway RV Center is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @616-384-9117 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
